Key Features

• -2-in-1 Drilling Guide: This concealed hinge jig simultaneously supports hinge and shelf pin hole drilling in one tool. Eliminates tool changes to boost efficiency, ideal for cabinet door installation. Saves time for DIY enthusiasts and woodworkers completing cabinet projects with professional precision
• -35mm Precision Hinge: This cabinet doors jig with features 0-15mm depth-stop drill bit collar for accurate 35mm industry-standard hinge holes. Prevents over-drilling and ensures compatibility with concealed hinges. Enables woodworkers and installers to achieve flawless hinge fitting in cabinet doors with millimeter accuracy

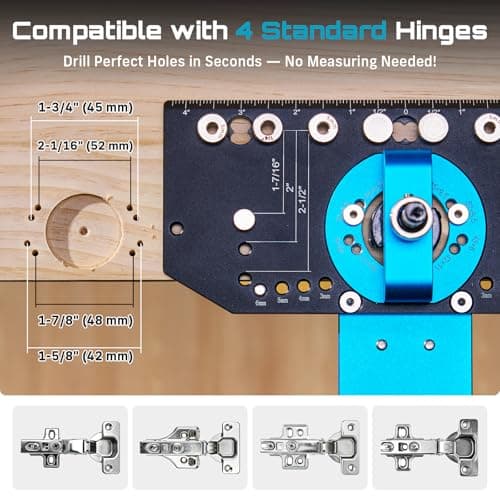

• -4 Size Screw Holes: This concealed hinge jig for cabinet doors comes with 4 types of hinge fixing screws of 1-5/8" (42 mm), 1-7/8" (48 mm), 2-1/16" (52 mm) and 1-3/4" (45 mm). It is compatible with most mainstream hinge sizes, supporting installation for various types of cabinet doors. It integrates with the body without the need for tool replacement or secondary positioning, enabling you to meet your diverse needs

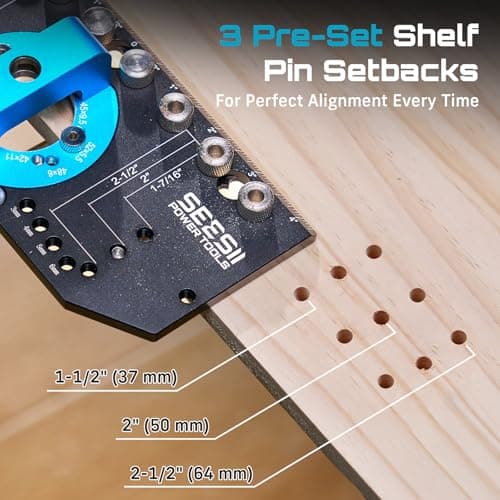

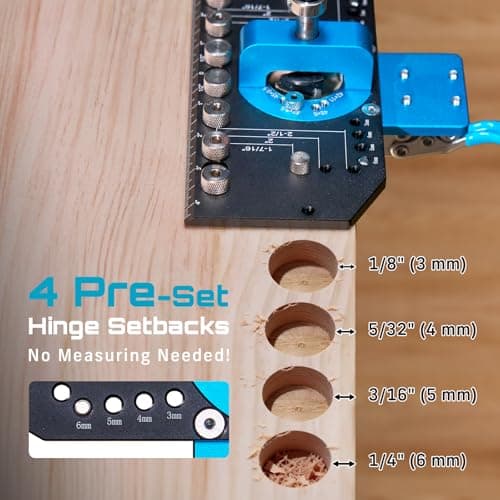

• -Pre-set Margins Adjustment: Concealed cabinet hinge jig with 4 hinge margin settings of 3mm，4mm，5mm，6mm + 3 shelf pin margin settings of 37mm, 50mm, 64mm margin settings adapts to European/American cabinet door hinge and shelf pin standards, solving custom installation challenges. Empowers professional woodworkers to tackle non-standard cabinet builds with versatile compatibility

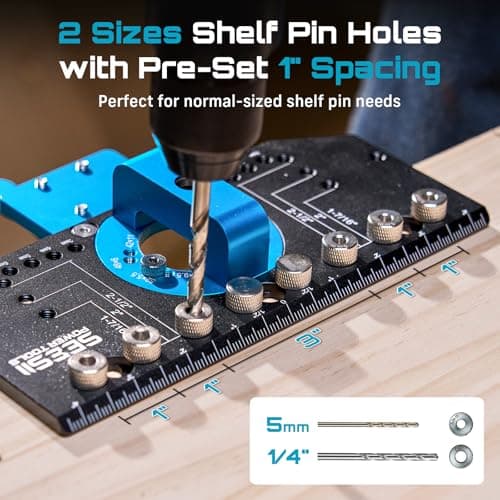

• -2 Size Bits for Shelf Pin & Standard Handle: This drilling guide locator has 2 size drilling bits of 5mm & 1/4" and a 1-inch spacing between holes and six holes. It not only meets the common requirements for drilling shelf pins, but also supports standard-sized handles with 3-inch and 5-inch hole spacings.
• -Dual Bearing-Guide System: Dual-bearing pilot screw of the cabinet door hinge jig reduces friction by ultra-smooth drilling. Extends bit lifespan and cuts maintenance costs. Ideal for furniture makers seeking efficient woodworking with reduced wear on tools
